QFX Series switches
QFX Series Switches deliver industry-leading throughput and scalability, an extensive routing stack, the open programmability of the Junos OS, and a broad set of EVPN-VXLAN and IP fabric capabilities. With QFX, you’ll find premier solutions for data center spine-and-leaf, campus distribution and core, and data center gateway and interconnect switching.

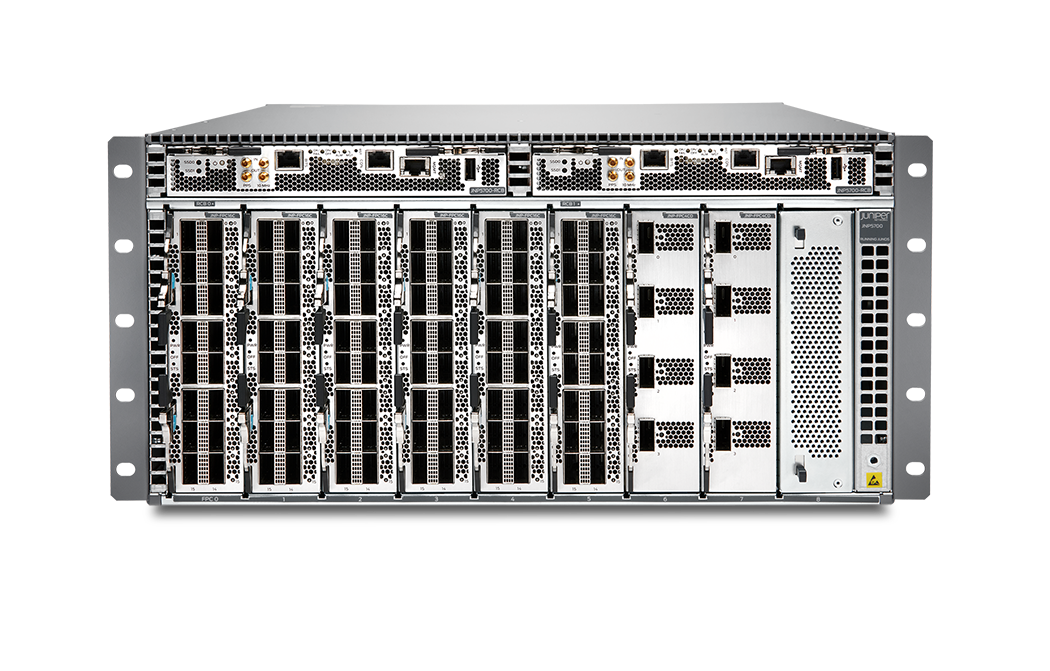

QFX5700
The QFX5700 line supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. With 10/25/40/50/100/200/GbE interface options, the QFX5700 is an optimal choice for spine-and-leaf deployments in enterprise, high-performance computing (HPC), service provider, and cloud provider data centers.
Use Case: Data Center Fabric Spine, EVPN-VXLAN Fabric, Data Center Interconnect (DCI) Border, Secure DCI, Multitier Campus, Campus IP Fabric
Port Density:
- 32 x 400GbE QSFP56-DD; 64 x 200GbE; 128 x 100GbE; 144 x 50/40/25/10GbE
Throughput: Up to 25.6 Tbps (bidirectional)
QFX5130
The QFX5130 line offers a high-density, cost-optimized 1 U, 400GbE fixed configuration switch based on the Broadcom Trident 4 that is ideal for environments where cloud services are being added. With 10/25/40/100/400GbE interface options, the QFX5130 line is an optimal choice for spine-and-leaf deployments in enterprise, service provider, and cloud provider environments.
Use Case: Data Center Fabric Spine
Port Density:
- QFX5130-32CD: 32 x 400GbE QSFP-DD/QSFP+/QSFP28 and 2 x 10GbE SFP+
Throughput: Up to 25.6 Tbps (bidirectional)

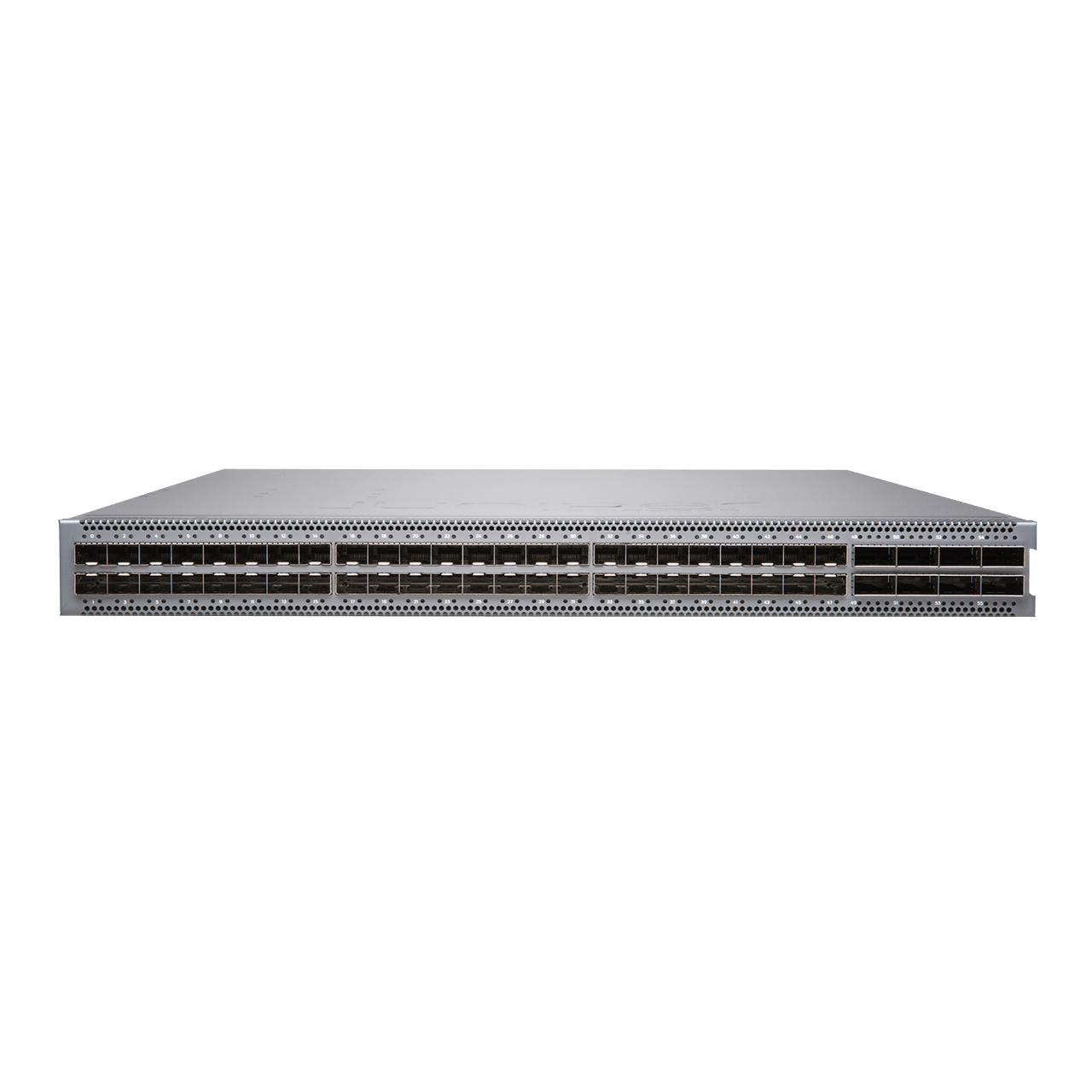

QFX5120
The QFX5120 line offers 1/10/25/40/100GbE switches designed for data center, data center edge, data center interconnect and campus deployments with requirements for low-latency Layer 2/Layer 3 features and advanced EVPN-VXLAN capabilities.
Use Case: Data Center Fabric Leaf/Spine, Campus Distribution/Core, applications requiring MACsec
Port Density:
- QFX5120-48T: 48 x 1/10GbE RJ-45 and 6 x 40/100GbE QSFP+/QSFP28
- QFX5120-48Y: 48 x 1/10/25GbE SFP/SFP+ and 8 x 40/100GbE QSFP+/QSFP28
- QFX5120-48YM: 48 x 1/10/25GbE SFP/SFP+ and 8 x 40/100GbE QSFP+/QSFP28
- QFX5120-32C: 32 x 40/100GbE QSFP+/QSFP28 and 2 x 10GbE SFP+
Throughput: Up to 2.16/4/6.4 Tbps (bidirectional)
MACsec: AES-256 encryption on all ports (QFX5120-48YM)
QFX5110
QFX5110 10/40GbE switches offer flexible deployment options and rich automation features for data center and campus deployments that require low-latency Layer 2/Layer 3 features and advanced EVPN-VXLAN capabilities. The QFX5110 provides universal building blocks for industry-standard architectures such as spine-and-leaf fabrics.
Use Case: Data Center Fabric Leaf
Port Density:
- QFX5110-48S: 48 x 1/10GbE SFP/SFP+ and 4 x 40/100GbE QSFP+/QSFP28
- QFX5110-32Q: 32 x 40GbE QSFP+; 20 x 40GbE QSFP+ and 4 x 100GbE QSFP28
Throughput: Up to 1.76/2.56 Tbps
QFX5220
The QFX5220 line offers up to 400GbE interfaces for very large, dense, and fast standards-based fabrics based on proven internet-scale technology. QFX5220 switches are an optimal choice for spine-and-leaf data center fabric deployments as well as metro use cases.
Use Case: Data Center Fabric Spine
Port Density:
- QFX5220-32CD: 32 x 40/100/400GbE QSFP56-DD and 2 x 10GbE SFP+
- QFX5220-128C: 128 x 100GbE QSFP28 and 2 x 10GbE SFP+
Throughput: Up to 25.6 Tbps (bidirectional)
QFX5210
The QFX5210 line offers line-rate, low-latency 10/25/40/100GbE switches for building large, standards-based fabrics. QFX5210 Switches are an optimal choice for spine-and-leaf data center fabric deployments as well as metro use cases.
Use Case: DC fabric leaf/spine
Port Density:
- QFX5210-64C/-S: 64 x 40/100GbE QSFP+/QSFP28
Throughput: Up to 12.8 Tbps (bidirectional)
SONiC: ONIE and SONiC images preinstalled on QFX5210-64C-S

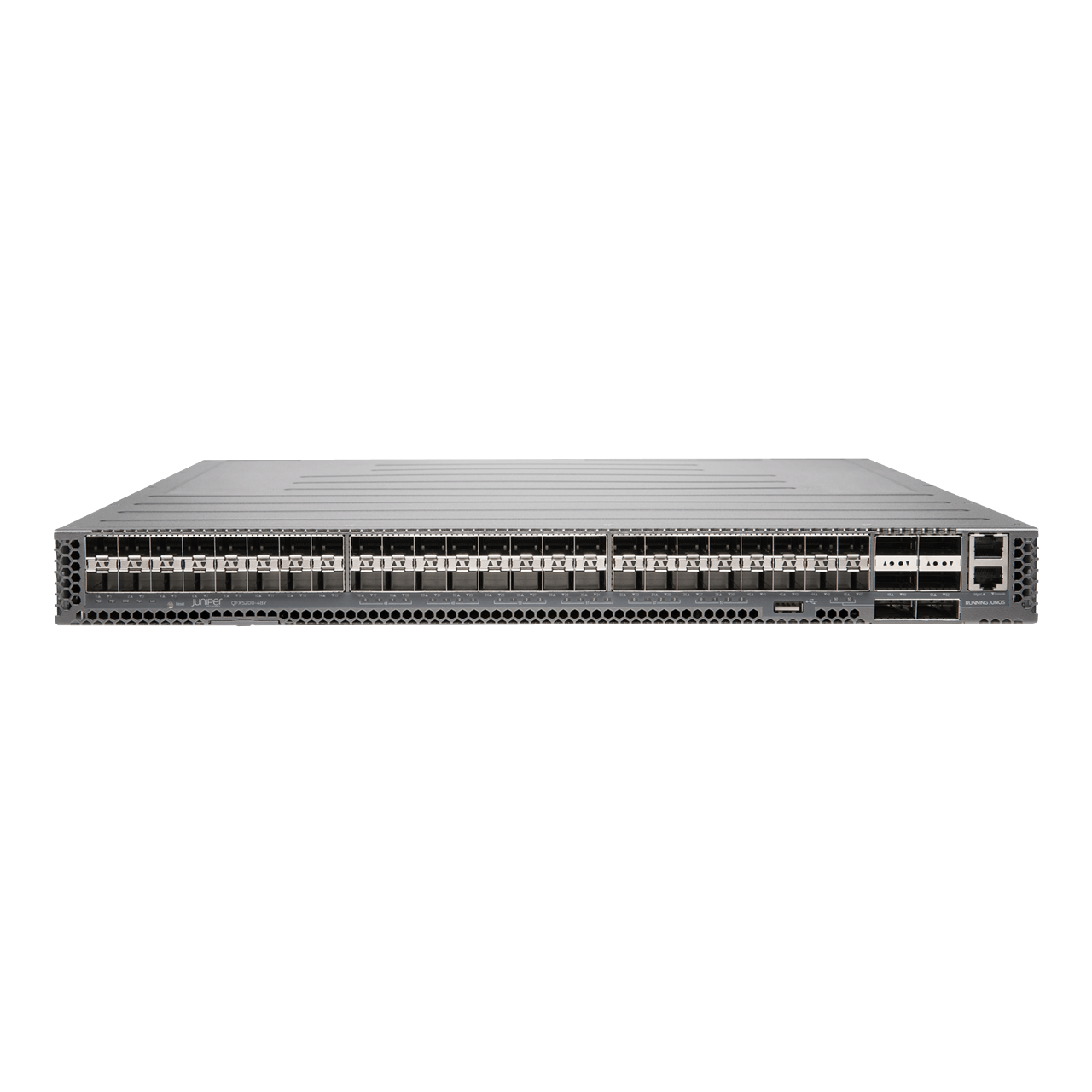

QFX5200
The QFX5200 line offers line-rate, low-latency 10/25/40/50/100GbE switches for building large, standards-based fabrics. QFX5200 Switches are an optimal choice for spine-and-leaf fabric deployments in the data center as well as metro use cases.
Use Case: Data Center Fabric Leaf/Spine
Port Density:
- QFX5200-48Y: 48 x 10/25GbE SFP+/SFP28 and 6 x 40/100GbE QSFP+/QSFP28
- QFX5200-32C/-S: 32 x 40/100GbE QSFP+/QSFP28
Throughput: Up to 3.6/6.4 Tbps (bidirectional)
SONiC: ONIE and SONiC images preinstalled on QFX5200-32C-S

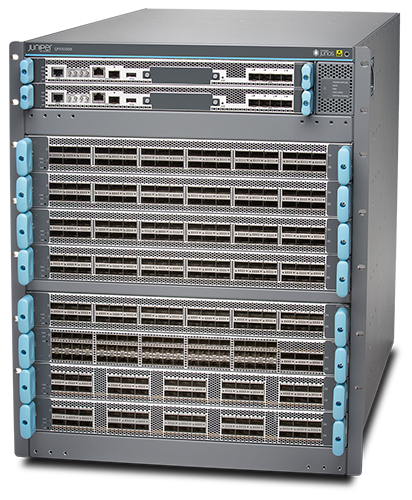

QFX10008 + QFX10016
QFX10008 and QFX10016 Switches support the most demanding data center, campus, and routing environments. With our custom silicon Q5 ASICs, deep buffers, and up to 96 Tbps throughput, these switches deliver flexibility and capacity for long-term investment protection.
Use Case: Data Center Fabric Spine
Chassis Options:
- QFX10008: 13 U chassis, up to 8 line cards
- QFX10016: 21 U chassis, up to 16 line cards
Port Density:
- QFX10000-30C-M: 30 x 100/40GbE, MACsec-enabled
- QFX10000-30C: 30 x 100/40GbE
- QFX10000-36Q: 36 x 40GbE or 12 x 100GbE
- QFX10000-60S-6Q: 60 x 1/10GbE with 6 x 40GbE or 2 x 100GbE
- QFX10000-12C-DWDM: 6 x 200Gbps
Throughput: Up to 96 Tbps (bidirectional)
Deep Buffers: 100 ms per port
Precision Time Protocol (PTP)
QFX10002
QFX10002 fixed-configuration switches are very dense, highly scalable platforms designed for today’s most demanding data center, campus, and routing environments. They’re loaded with power and functionality, all housed in a compact, 2 U form factor.
Use Case: Data Center Fabric Leaf/Spine
Port Density:
- QFX10002-36Q: 36 x 40GbE QSFP+ or 12 x 100GbE QSFP28
- QFX10002-72Q: 72 x 40GbE QSFP+ or 24 x 100GbE QSFP28
- QFX10002-60C: 60 x 40/100GbE QSFP+/QSFP28
Throughput: Up to 2.88/5.76/12 Tbps (bidirectional)
Deep Buffers: 100 ms per port
Precision Time Protocol (PTP)

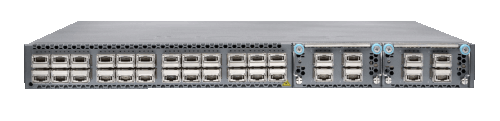

QFX5100
The QFX5100 line of top-of-rack 10/40GbE switches for the data center offers low latency, deployment versatility, and rich automation features. These switches provide universal building blocks for industry-standard architectures such as spine-and-leaf fabrics.
Use Case: Data Center Fabric Leaf
Port Density:
- QFX5100-48S: 48 x 1/10GbE SFP/SFP+ and 6 x 40GbE QSFP+
- QFX5100-48T: 48 x 100Mbps/1/10GbE RJ-45 and 6 x 40GbE QSFP+
- QFX5100-24Q: 24/32 x 40GbE QSFP+
- QFX5100-96S: 96 x 1/10GbE SFP/SFP+ and 8 x 40GbE QSFP+
Throughput: Up to 1.44/2.56 Tbps
